UAV Lidar Mapping

Unmanned Aerial Vehicles (UAVs) equipped with Lidar technology have transformed the way we capture and analyze the physical world. This combination offers a powerful tool for creating detailed, accurate maps quickly and efficiently. Whether for environmental monitoring, urban planning, or infrastructure inspection, UAV Lidar mapping provides valuable data that was once difficult or costly to obtain.

UAV capturing detailed Lidar data over forest terrain

What is UAV Lidar Mapping?

UAV Lidar mapping involves mounting a Lidar sensor on a drone to scan the earth’s surface. Lidar, which stands for Light Detection and Ranging, uses laser pulses to measure distances to objects. The drone flies over an area, sending out thousands of laser pulses per second. These pulses bounce back from the ground and objects, allowing the system to create a precise 3D model of the terrain and features.

This method offers several advantages over traditional surveying techniques:

• Speed: UAVs can cover large areas in a fraction of the time it takes ground crews.

• Accuracy: Lidar provides centimeter-level precision in elevation and distance measurements.

• Accessibility: Drones can reach difficult or dangerous locations without putting people at risk.

• Detail: The 3D point clouds generated reveal fine details such as vegetation structure, buildings, and terrain variations.




Key Applications of UAV Lidar Mapping

Environmental Monitoring and Forestry

UAV Lidar mapping helps scientists and land managers monitor forests and natural habitats. It can measure tree height, canopy density, and biomass, which are critical for assessing forest health and carbon storage. For example, researchers use UAV Lidar to track changes in forest structure after wildfires or storms, providing data to guide restoration efforts.

Urban Planning and Construction

City planners and engineers use UAV Lidar to create accurate topographic maps for new developments. The detailed 3D models help identify suitable building sites, plan drainage systems, and design roads. Construction teams rely on Lidar data to monitor progress and ensure structures are built according to specifications.

Infrastructure Inspection

Bridges, power lines, and railways require regular inspection to maintain safety. UAV Lidar mapping allows inspectors to quickly scan these structures, detecting cracks, deformations, or vegetation encroachment. This approach reduces the need for manual inspections, which can be costly and hazardous.

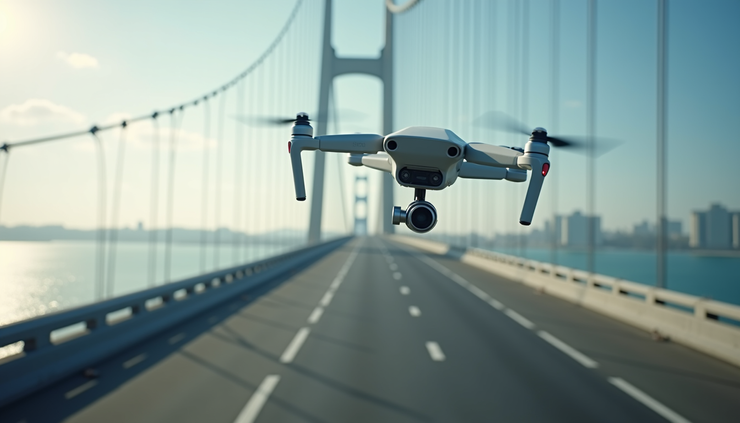

Drone performing Lidar scan on bridge infrastructure

How UAV Lidar Mapping Works in Practice

A typical UAV Lidar mapping project follows these steps:

Lidar Survey/ Topographical Survey

Book Now

1. Planning the Flight

   Operators define the survey area and flight path using specialized software. They set parameters such as altitude, speed, and overlap to ensure complete coverage.




1. Data Collection

   The drone flies the planned route, emitting laser pulses and recording the reflected signals. Simultaneously, onboard GPS and inertial measurement units track the drone’s position and orientation.




2. Data Processing

   Raw Lidar data is processed to remove noise and align the point cloud with geographic coordinates. Software generates detailed 3D models, digital elevation models (DEMs), and contour maps.




1. Analysis and Reporting

   The processed data is analyzed to extract meaningful information. For example, forestry experts might calculate tree heights, while engineers assess structural integrity.




Challenges and Considerations

While UAV Lidar mapping offers many benefits, some challenges remain:

• Weather Dependence

Rain, fog, or strong winds can affect drone flights and data quality. Clear, calm conditions are ideal.

• Data Volume

Lidar generates large datasets that require significant storage and processing power.

• Regulations

Road and Pipeline Design

Book Now

Operators must comply with local drone flight regulations, which may restrict where and when UAVs can fly.

• Cost

High-quality Lidar sensors and drones represent a significant investment, though prices are gradually decreasing.

Future Trends in UAV Lidar Mapping

Advances in sensor technology and data processing continue to expand UAV Lidar capabilities. Smaller, lighter sensors allow longer flight times and access to tighter spaces. Integration with other sensors, such as cameras and multispectral imagers, provides richer datasets for analysis.

Artificial intelligence and machine learning are also playing a growing role. Automated classification of point clouds can identify features like buildings, vegetation, or water bodies faster and more accurately than manual methods.

Final Thoughts

UAV Lidar mapping is a practical, efficient way to capture detailed 3D data of the environment. It supports a wide range of industries by providing accurate maps and models that inform better decisions. As technology evolves, UAV Lidar will become even more accessible and useful, helping us understand and manage the world around us with greater precision.
